A New Cache Diagnostics Page

The Problem:
- We have more than 50 odd servers in production behind the F5 loadbalancer
- In a normal scenario any website uses different data retrieval techniques using different caching techniques.
- A week back we faced a production issue where the cached data was not getting cleared properly on one or two specific servers only.
- Sitecore has an out of the box “No Login Cache Page”(/Diag/NoLoginCache.aspx) to view and manage cache data
- The problem was that you will have to access each of these 50 CD( Contect Delivery) servers and check if cache was cleared properly or not.

The Challenge:
- We wanted to develop a ‘Cache Diagnostics’ page which will be deployed on the CM(Content Management/Authoring server) which will connect to all these 50 odd CD servers to retrieve the cache information from all these servers and show that data in a tabulated matrix data.

The Design:
- A achieve the above result, this is what we wanted to design
  - expose a service end point on each of these CD servers to retentive cache information from each server
  - expose a proxy service endpoint on the CM sites to communicate with these CD servers to retrieve the data data from CD servers
  - develop a simple single page( using AngularJS/Ajax) which consumes the service data and shows the information from all these 50 odd servers

The Solution:

Exposing a service end point on CD servers:
- The code is easy and self explanatory.
- Suppose you have multi language multi site Sitecore instance. E.g. You have 2 websites as website 1 and website 2 and both in 2 languages MX and CA.
- [EnableCors(origins: “*”, headers: “*”, methods: “*”)] is used to enable Cross Origin Requests from proxies and clients
- Get the lis aof languages and Websites to retrive only site and language specific caches from the full list of caches as managed by Sitecore.
- Put the info into a dictionary or any complex JSON object as per you requirement.
- I used the routing table to map and update the routes to call my service end point.
- routeCollection.MapRoute(
  name: “Gethtmlcache“,
  url: “cachediagnotics/gethtmlcache/{subsidiarylist}“,
  defaults: new { controller = “cachediagnotics”, action = “gethtmlcache”, subsidiarylist = UrlParameter.Optional },
  namespaces: new[] { “MK.eCommerce.Web.Controllers” }); routeCollection.MapRoute(
  name: “GetCachAllServers“,
  url: “cachediagnotics/getcacheallservers“,
  defaults: new { controller = “cachediagnotics”, action = “getcacheallservers” },
  namespaces: new[] { “MK.eCommerce.Web.Controllers” }); routeCollection.MapRoute(
  name: “ClearCacheData“,
  url: “cachediagnotics/clearcachedata“,
  defaults: new { controller = “cachediagnotics”, action = “clearcachedata” },
  namespaces: new[] { “MK.eCommerce.Web.Controllers” });
- Please see that I added 3 routes – Gethtmlcache(for getting html cache from CD servers), GetCachAllServers(for the proxy service end point to get cache data from all CD servers) and ClearCacheData(to clear the cache data)
- The server list is iterated through to call the service end point Gethtmlcache and the data retrieve is is hold into a dictionary.
- I also put the data from all server under a key which the is request time, so that I can show that at what time stamp what was the cache info from all servers.
- using System.Collections.Generic;
  using System.IO;
  using System.Linq;
  using System.Net;
  using System.Net.Http;
  using System.Web;
  using System.Web.Http.Cors;
  using System.Web.Mvc; namespace MyProject.Web.Controllers
  {
  public class CacheDiagnoticsController : GlassController
  {
  [EnableCors(origins: “*”, headers: “*”, methods: “*”)]
  public ActionResult GetHtmlCache(string subsidiaryList)
  {
  var log = global::Sitecore.Diagnostics.LoggerFactory.GetLogger(“LogFileAppender”);
  var dictHtmlCaches = new Dictionary<string, string>();
  try
  {
  // get list of subsidiaries for a specific region
  var lstSubsidiaries = subsidiaryList.Split(new[] {‘,’}, StringSplitOptions.RemoveEmptyEntries).ToList(); // get cache from a specific server
  var allCaches = Sitecore.Caching.CacheManager.GetAllCaches(); // filter Html cache only based on subsidiary
  foreach (var subsidiary in lstSubsidiaries)
  {
  var htmlCaches = allCaches.Where(t => t.Name.Contains(“.” + subsidiary.ToLower() + “/website1[html]“) | t.Name.Contains(“.” + subsidiary.ToLower() + “/website2[html]“));
  foreach (var cache in htmlCaches)
  {
  if (cache.Name.Contains(“.” + subsidiary.ToLower() + “/website1[html]”))
  {
  dictHtmlCaches.Add(subsidiary.ToLower() + “-website1“, cache.Size.ToString());
  }
  else if (cache.Name.Contains(“.” + subsidiary.ToLower() + “/website2[html]”))
  {
  dictHtmlCaches.Add(subsidiary.ToLower() + “-website2“, cache.Size.ToString());
  }
  }
  } }
  catch (Exception ex)
  {
  log.Info(“CacheDiagnostics.GetHtmlCache. Can’t get the required data, Error Info: ” + ex.Message);
  } // serialize and return cache info from the specifc server
  var jsonString = JsonConvert.SerializeObject(dictHtmlCaches, new JsonSerializerSettings { ReferenceLoopHandling = ReferenceLoopHandling.Serialize });
  return this.Content(jsonString, “application/json”); }
Exposing a proxy service end point on CM servers to communicate with CD servers :
- As you can see that I am getting the list of servers from a config file.
- GetCacheAllServers is the proxy call to internally call the Gethtmlcache end point
- ClearCacheData is used to clear the cache
- <configuration xmlns:patch=”http://www.sitecore.net/xmlconfig/”>
  <sitecore>
  <!–For Cache Diagnostics settings – starts–>
  <settings>
  <setting name=”SubsidiaryList” value=”MX” />
  <setting name=”ServersList” value=”websitehostname1,websitehostname1” />
  </settings>
  <!–For Cache Diagnostics settings – ends–>
  </sitecore>
  </configuration>
- using Glass.Mapper.Sc.Web.Mvc;
  using Newtonsoft.Json;
  using System;
  using System.Collections.Generic;
  using System.IO;
  using System.Linq;
  using System.Net;
  using System.Net.Http;
  using System.Web;
  using System.Web.Http.Cors;
  using System.Web.Mvc; namespace MK.eCommerce.Web.Controllers
  {
  public class CacheDiagnoticsController : GlassController
  {
  [EnableCors(origins: “*”, headers: “*”, methods: “*”)]
  public ActionResult GetCacheAllServers()
  {
  // variable declarations
  var log = global::Sitecore.Diagnostics.LoggerFactory.GetLogger(“LogFileAppender”);
  var serversList = Sitecore.Configuration.Settings.GetSetting(“ServersList”);
  var subsidiaryList = Sitecore.Configuration.Settings.GetSetting(“SubsidiaryList”); try
  {
  List<string> lstServers = new List<string>();
  Dictionary<string, object> dictData = new Dictionary<string, object>(); // get te list of servers
  if (!string.IsNullOrWhiteSpace(serversList))
  {
  var arrServers = serversList.Split(new[] { ‘,’ }, StringSplitOptions.RemoveEmptyEntries).ToList();
  foreach (var server in arrServers)
  {
  lstServers.Add(server);
  }
  }
  else
  {
  lstServers.Add(System.Environment.MachineName);
  } // call the service to get cache info from the server
  string result = string.Empty;
  foreach (var serverName in lstServers)
  {
  var serviceUrl = “http://” + serverName + “/cachediagnotics/gethtmlcache/” + subsidiaryList.ToLower(); var request = (HttpWebRequest)WebRequest.Create(serviceUrl); request.Method = “GET”;
  request.AutomaticDecompression = DecompressionMethods.Deflate | DecompressionMethods.GZip;
  ServicePointManager.SecurityProtocol = SecurityProtocolType.Tls12; try
  {
  result = string.Empty; using (var response = (HttpWebResponse) request.GetResponse())
  {
  using (var stream = response.GetResponseStream())
  {
  using (var sr = new StreamReader(stream))
  {
  result = sr.ReadToEnd();
  dictData.Add(serverName, JsonConvert.DeserializeObject<Dictionary<string, string>>(result));
  }
  }
  }
  }
  catch (Exception ex)
  {
  dictData.Add(serverName, new Dictionary<string, object>());
  log.Info(“CacheDiagnostics.GetCacheAllServers. Can’t connect to server ” + serverName + “, Error Info: ” + ex.Message);
  }
  } // get cache info from a cookie/session
  var diagnosticCache = Session[“DiagnosticCache”] as Dictionary<string, object>; // if there is already exisiting data then add the current data else just show this data
  if (diagnosticCache != null && diagnosticCache.Count > 0)
  {
  diagnosticCache.Add(DateTime.Now.ToString(“MM/dd/yyyy HH:mm:ss.fff tt”), dictData);
  }
  else
  {
  diagnosticCache = new Dictionary<string, object>();
  diagnosticCache.Add(DateTime.Now.ToString(“MM/dd/yyyy HH:mm:ss.fff tt”), dictData);
  } // write the data back into the Session
  Session[“DiagnosticCache”] = diagnosticCache; // serialize and return cache info to be consumed by clients
  var jsonString = JsonConvert.SerializeObject(diagnosticCache, new JsonSerializerSettings { ReferenceLoopHandling = ReferenceLoopHandling.Serialize });
  return this.Content(jsonString, “application/json”);
  }
  catch (Exception ex)
  {
  log.Info(“CacheDiagnostics.GetCacheAllServers. Can’t get required data, Error Info: ” + ex.Message);
  return null;
  }
  } [EnableCors(origins: “*”, headers: “*”, methods: “*”)]
  public ActionResult ClearCacheData()
  {
  var log = global::Sitecore.Diagnostics.LoggerFactory.GetLogger(“LogFileAppender”);
  try
  {
  // write blank data back into the Session
  var diagnosticCache = new Dictionary<string, object>();
  Session[“DiagnosticCache”] = diagnosticCache; // serialize and return cache info to be consumed by clients
  var jsonString = JsonConvert.SerializeObject(diagnosticCache, new JsonSerializerSettings { ReferenceLoopHandling = ReferenceLoopHandling.Serialize });
  return this.Content(jsonString, “application/json”);
  }
  catch (Exception ex)
  {
  log.Info(“CacheDiagnostics.ClearCacheData. Can’t get required data, Error Info: ” + ex.Message);
  return null;
  }
  }
  }
  }

Developing and AngularJS page on CM servers to consume and show info:

Once you have the data in a specific format, you can use AngularJS to call and consume the proxy endpoint to get the data and show
The angular page is very simple
It calls – $http.get(“/cachediagnotics/getcacheallservers”) to return all CD servers cache info and then use ng-repeat expressions to iterate through the cache data.

<%@ Page Language=”C#” AutoEventWireup=”true” CodeBehind=”CacheDiagnostics.aspx.cs” Inherits=”MyProject.Web.Diag.CacheDiagnostics” %> <!DOCTYPE html>
<html>
<head>
<title>Cache Diagnostics</title>
https://ajax.googleapis.com/ajax/libs/angularjs/1.5.7/angular.min.js
https://ajax.googleapis.com/ajax/libs/jquery/3.1.0/jquery.min.js
<style>
body {
font-family: Helvetica, Arial, Sans-Serif, Verdana;
font-size: 12px;
} table {
width: auto;
float: left;
border-spacing: 1;
align-content: center;
} #tblDetails td, #tblDetails th {
border: 1px solid #CCC;
height: auto;
width: auto;
text-align: center;
} #tblDetails th {
background: silver;
} #tblDetails td {
background: whitesmoke;
} #tblMatrix td, #tblMatrix th {
border: 1px solid #CCC;
height: auto;
width: auto;
text-align: center;
} #tblMatrix th {
background: silver;
} #tblMatrix td {
background: whitesmoke;
} #tblMain td, #tblMain th {
border: 1px solid #CCC;
height: auto;
width: auto;
text-align: left;
} #tblMain th {
background: silver;
} #tblMain td {
background: whitesmoke;
} </style> angular.module(‘CacheDiagnosticsApp’, [])
.controller(‘GetHtmlCache’, function ($scope, $http) {
$(“#tblMain”).hide(); // get cache info
$scope.getCacheInfo = function () {
// call the proxy server method to get cache data
var dictDataMatrix = {}
$http.get(“/cachediagnotics/getcacheallservers”)
.then(function (response) {
//process dictDataMatrix to compare the last two rows and flag any mismatches
$scope.dictDataMatrix = response.data;
});
$(“#tblMain”).show();
}; // reset cache info
$scope.clearCacheInfo = function () {
$http.get(“/cachediagnotics/clearcachedata”)
.then(function (response) {
$scope.dictDataMatrix = response.data;
});
$(“#tblMain”).hide();
}; }); </head>
<body ng-app=”CacheDiagnosticsApp”>

Cache Diagnostics Matrix

Clear Cache Diagnostics Info
Get Cache Diagnostics Info

ng-repeat=”(requesttime, serverdata) in dictDataMatrix track by requesttime”>

Request DateTime Server Data

{{requesttime | date : “short”}}

{{servername}}

{{cachename}}

{{(cachesize.replace(‘*’,”))/1000|number}} KB

</body>
</html>

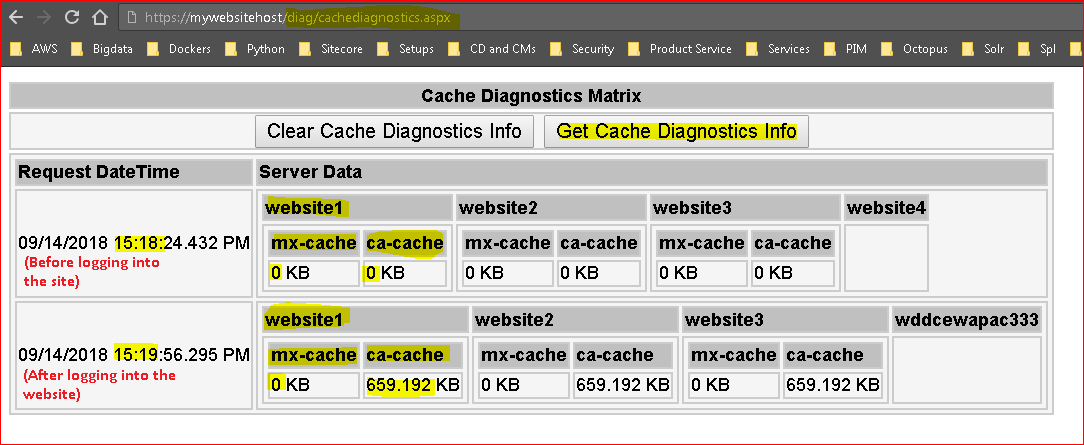

and here you go, see the output
You can see the cache values from 4 CD servers before logging into CD sites( all zeros). The after logging in when the websites generate cache data the values change.
From the values you can also tell that Ca-cache is getting generated meaning that canada site is getting accessed and all 3 servers are being used behind the F5 load balancer.
It also gives an indication that server 4 is either offline or no in the app pool mix on the load balancer.
So this page has become a lot handy for us to see the caching behavior of our CD sites behind the load balancer.
From the info below we can report to the DEVOps that website4 is not returning cache data so that they can investigate.
Is that helpful for you?
